The gooseneck roll trailer for sale is an innovative transportation solution designed for hauling heavy equipment and cargo with maximum efficiency and safety. Featuring a distinctive gooseneck design, this trailer allows for better weight distribution and stability while on the road. Its robust construction, often made from high-strength steel, ensures durability and longevity even under demanding conditions.

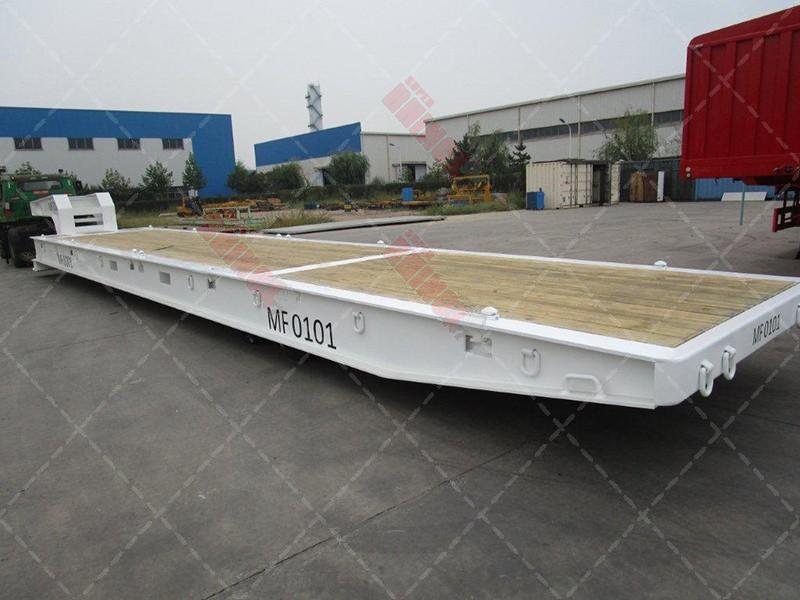

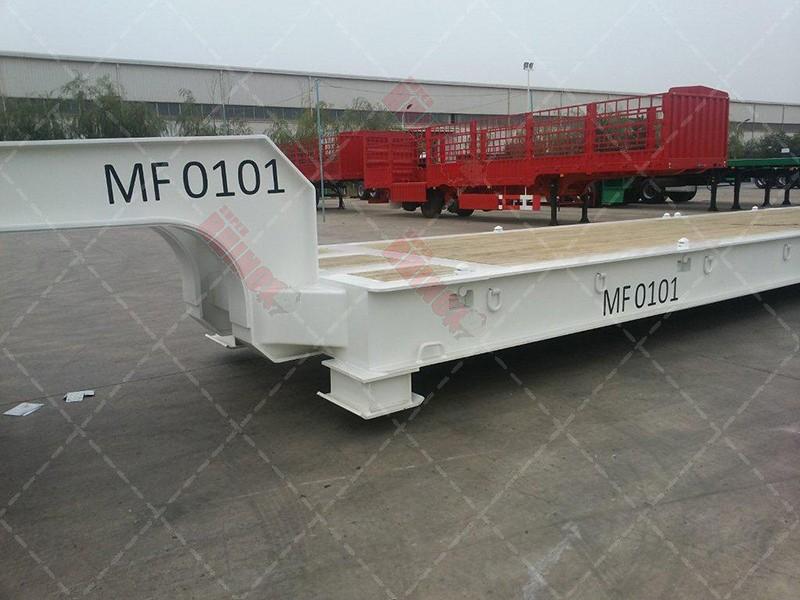

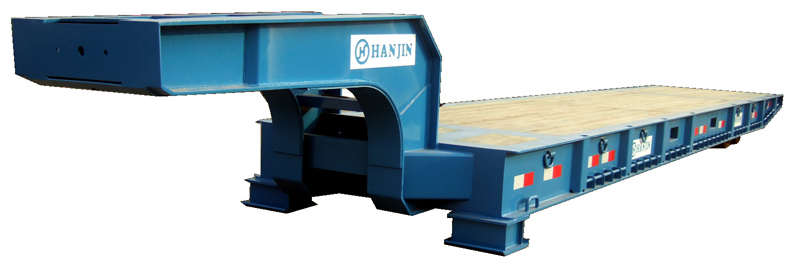

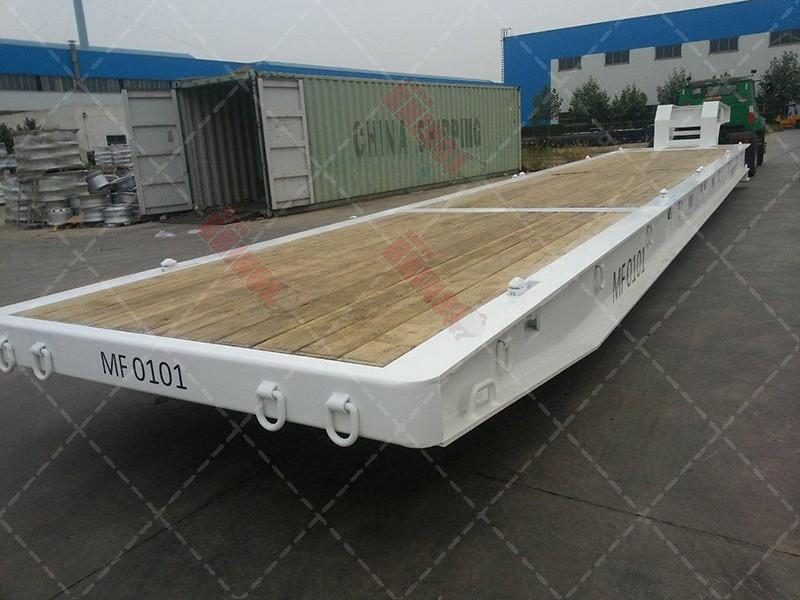

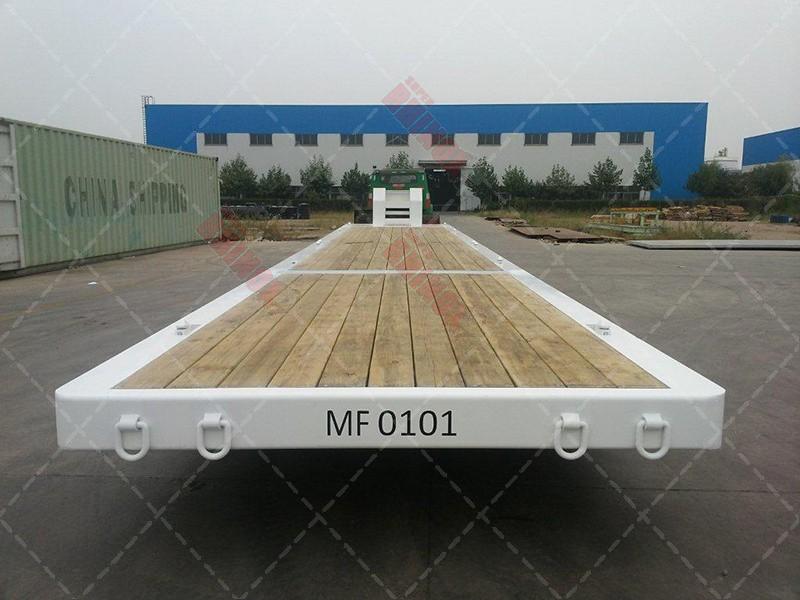

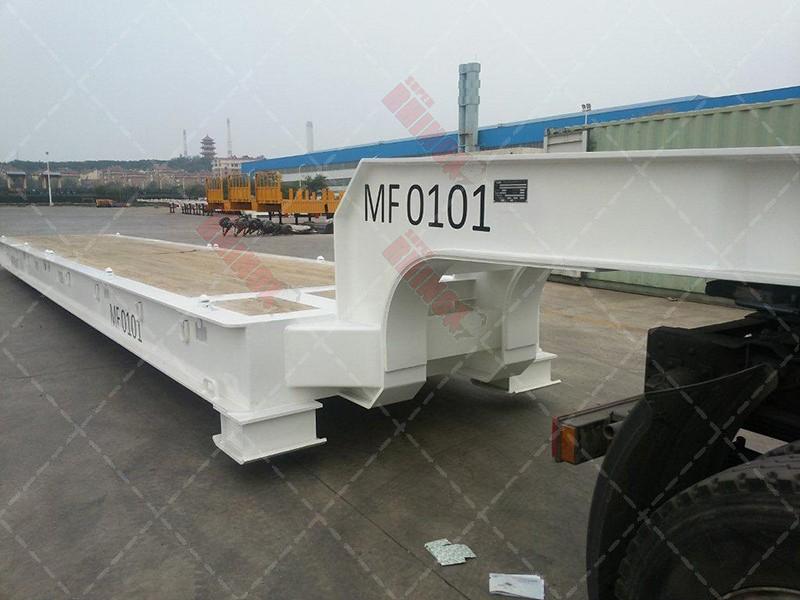

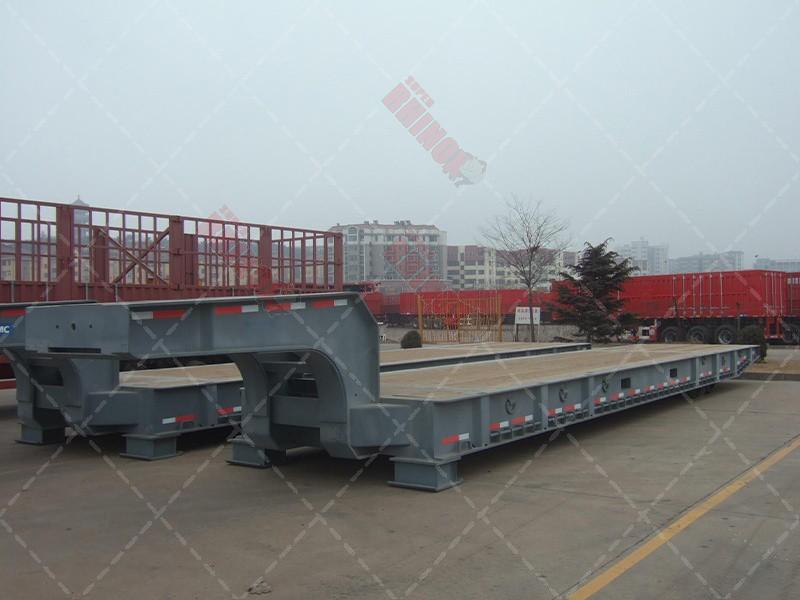

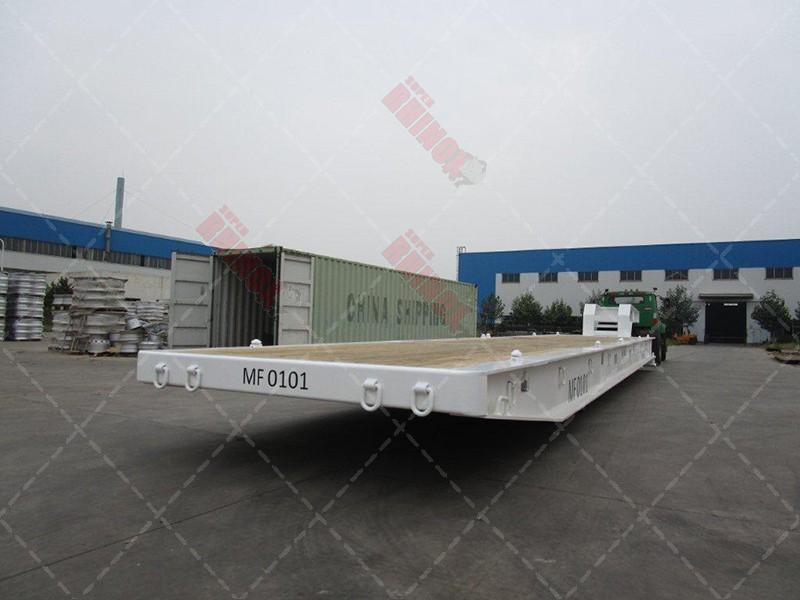

45ft Roller Trailer with Gooseneck
(This picture is only for reference)
The roller trailer for sale is designed for use in stevedoring and transporting of 1x40ft or 2x20 ft ISO cargo containers or loose cargo or big non knocked-down goods on Ro-Ro vessels or within terminal.
Roll Trailer Dimension:
Length: 15,160mm ± 10mm (approximate)
Width: 2,550mm ± 10mm (including mud guard)
Height: 1,691mm @ unload (without twist locks)
King Pin Location: 500 mm from the front face of the front bolster
Axle spacer: 10,790mm + 910mm
Fifth Wheel Height: 1,250mm with the chassis level
Landing Gear location: 1,500mm behind the king pin location
Roll Trailer Weight:
Tare Weight: approximate 12,500 kg
Max. Payload: 100,000 kg
GVWR: 112,500 kg
OEM Parts Configuration:
Running Gear:
● 2 rock arms lowered box construction
● 4 axles 140x140, φ100/80mm
● Taper roller bearings 30216 – 8 pieces, 32020 – 8 pieces
● 8 steel reinforced solid rubber tires 22"x16"x16"
● Deck 45mm thickness×200mm wide wood floor plate.
The company's technology center has advanced design methods and makes full use of Pro/E three-dimensional design and Ansys finite element analysis to provide effective support for product structure improvement and lightweight design.
It is light in weight but heavy in load.
The integration of internationally advanced design concepts improves transportation capabilities.
The wind resistance coefficient is small, saving fuel consumption.
The transportation height of the whole vehicle is low and the safety performance during transportation is improved.
This product can transport a variety of products, containers, bagged fertilizers, bagged cement, copper ore, steel coils.
Why Choice Cimceco Gooseneck Roll Roll Trailer For Sale
Welcome to our company, where we specialize in manufacturing top-of-the-line 45ft Roller Trailer with Gooseneck with three axles. Our trailers are engineered to meet the demands of transporting 40ft containers efficiently and safely, making them an ideal choice for various industries.
The 45ft Roller Trailer for sale with Gooseneck is designed with durability and versatility in mind. With a robust construction and high-quality materials, these trailers are built to withstand the rigors of long-distance transportation. Whether you are hauling goods across the country or navigating challenging terrain, our trailers offer unmatched reliability and performance.
Featuring three axles, our trailers provide superior stability and weight distribution, ensuring smooth handling and reduced wear on tires and other components. This configuration also allows for increased load capacity, making it easier to transport heavy containers with ease. Whether you're transporting standard 45ft containers or oversized cargo, our trailers are up to the task.
At our company, we understand the importance of providing solutions that meet the diverse needs of our customers. That's why we offer a wide range of options and customization opportunities for our 45ft Roller Trailer with Gooseneck. From different axle configurations to optional features such as air suspension and advanced braking systems, we can tailor our trailers to suit your specific requirements.
In addition to our 45ft Roller Trailer for sale with Gooseneck, we also offer tri axle flat deck trailers for sale. These trailers feature a flat deck design, making them ideal for transporting a variety of oversized or irregularly shaped cargo. With their robust construction and three-axle configuration, our flat deck trailers offer the same level of durability and performance as our container semi trailers.
Whether you're in need of a reliable 45ft Roller Trailer with Gooseneck or a versatile tri axle flat deck trailer, our company has you covered. Contact us today to learn more about our products and how we can help meet
|
|
|
|
|
A mature design team can design reasonable semi and trailer solutions according to customer needs in the first time, and solve semi and trailer’s problems for customers.
 Leading Full-Service Semi and Trailer DealershipQingdao Cimceco Vehicle Co., Ltd. has worked in the special vehicle industry for more than 30 years, selling about 800 vehicles annually, and has accumulated rich experience. We have our own factory,Our goal is to produce and Gooseneck Roll Roll Trailer with a relatively high cost performance.
|
Strong Technical Team
A mature semi and trailer design team can design reasonable solutions according to customer needs in the first time, and solve problems for customers.
Ouality Control System
Comprehensive supervision and control of semi and trailer products using international quality control standards.
High Ouality Raw Material
The steel used in the product of semi and trailer is all made of domestic first-tier steel mills.
After-sales service
Provide lifelong technical services for products, provide technical training for users, and provide 24-hour service.
Semi and Trailer Workshop
 Workshop |  Workshop |  Workshop |
 Workshop |  Workshop |  Workshop |
So far, 4,000 companies have chosen to cooperate with Cimceco
 |  |  |
 |  |  |
