A refrigerated truck body is designed to transport perishable goods while maintaining a controlled temperature. These trucks are equipped with built-in refrigeration units that allow for temperature regulation, ensuring the freshness of items like food, pharmaceuticals, and other temperature-sensitive products.
Typically constructed from lightweight, durable materials, refrigerated truck bodies come in various sizes to accommodate different cargo volumes.

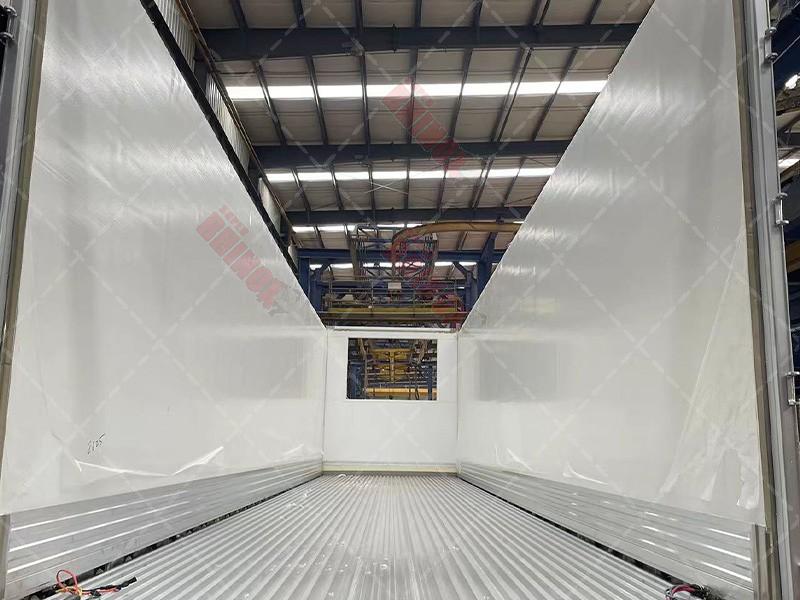

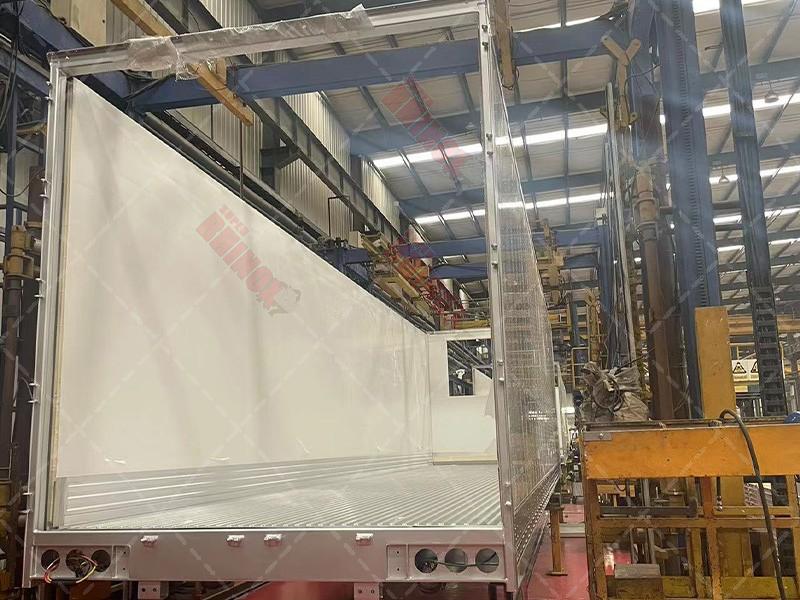

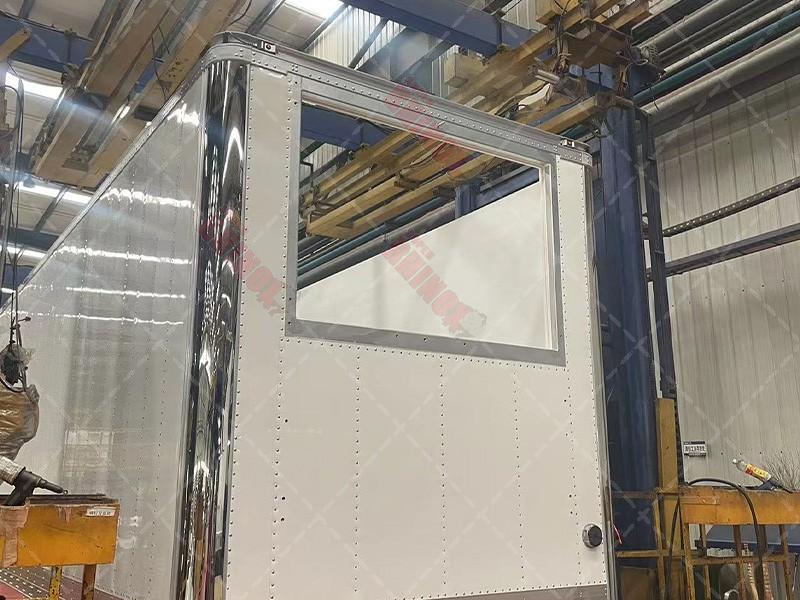

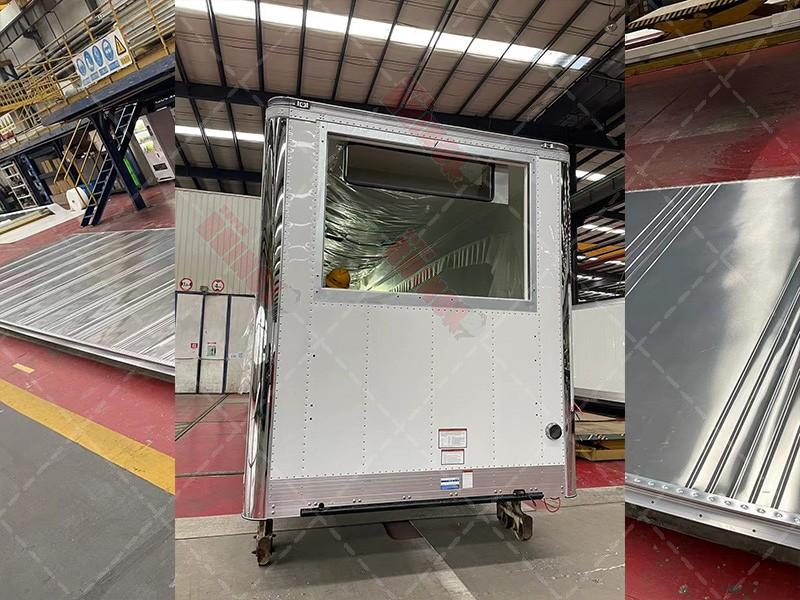

Refrigerated truck bodies are constructed with a focus on insulation, strength, and durability. They typically consist of several key components:

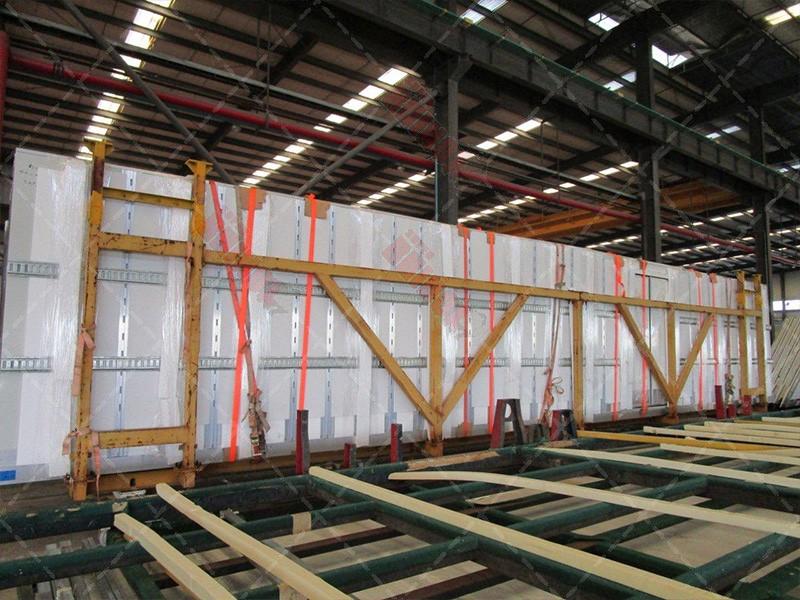

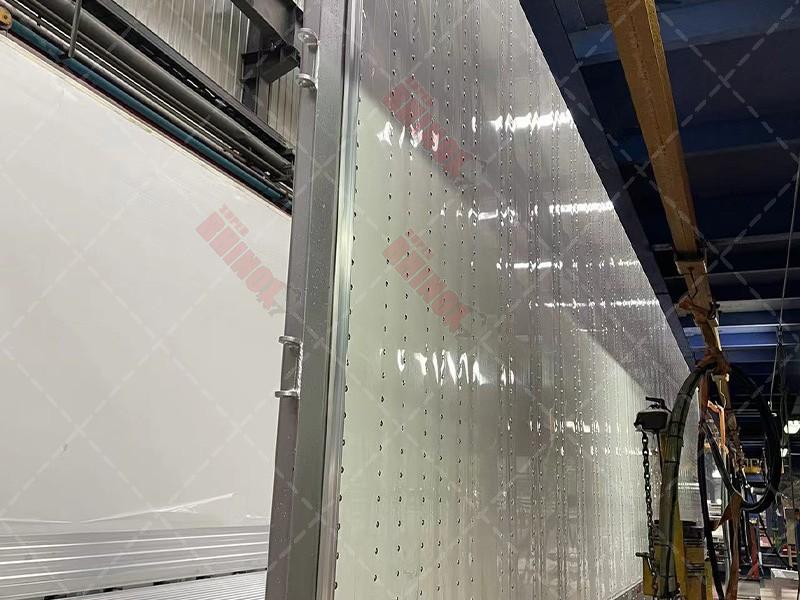

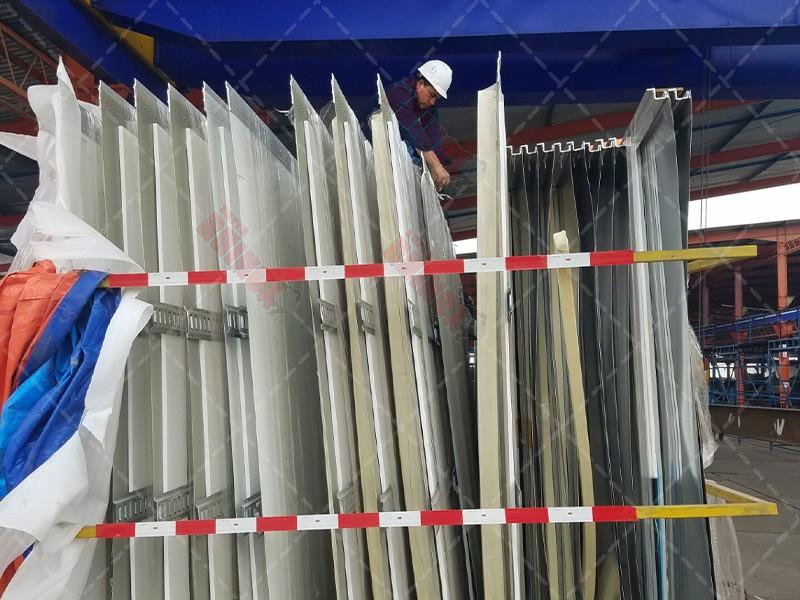

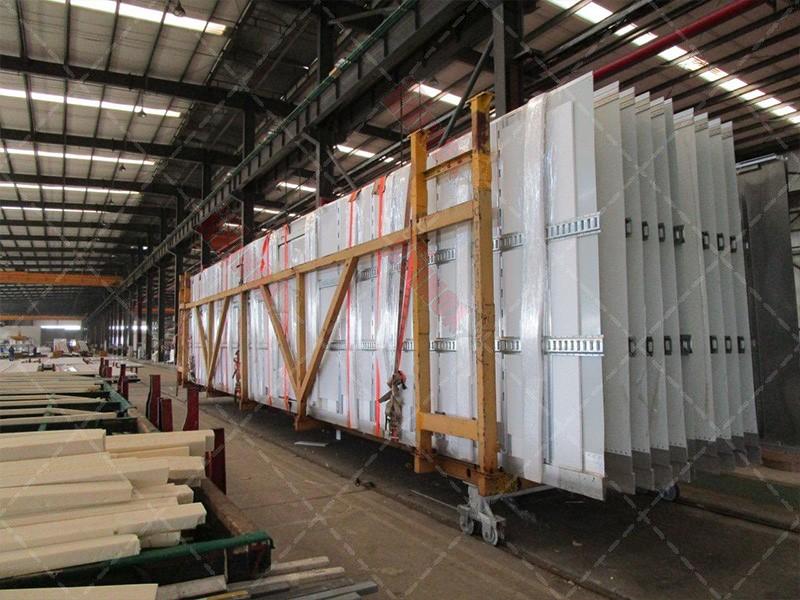

- Wall Panels: Made of FRP (Fiber Reinforced Plastic) or CFRT (Carbon Fiber Reinforced Thermoplastic) foam sandwich panels, which provide excellent insulation and strength .

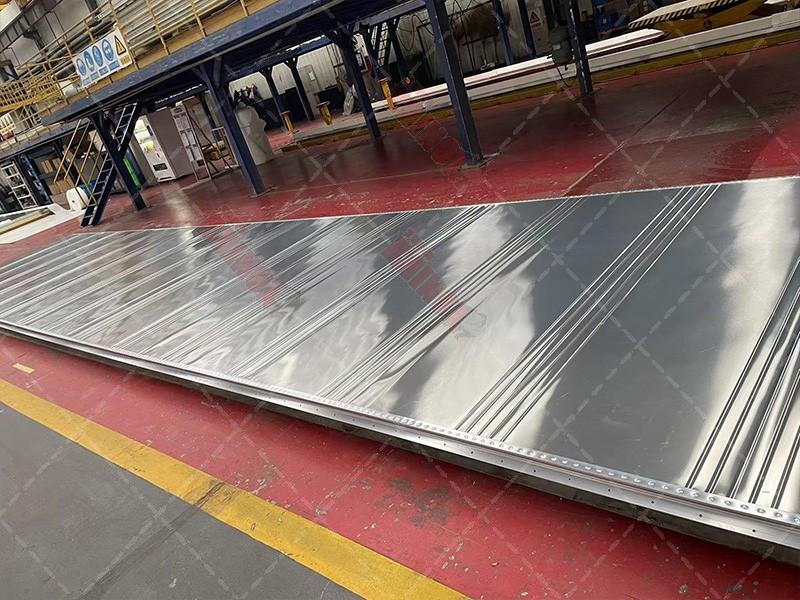

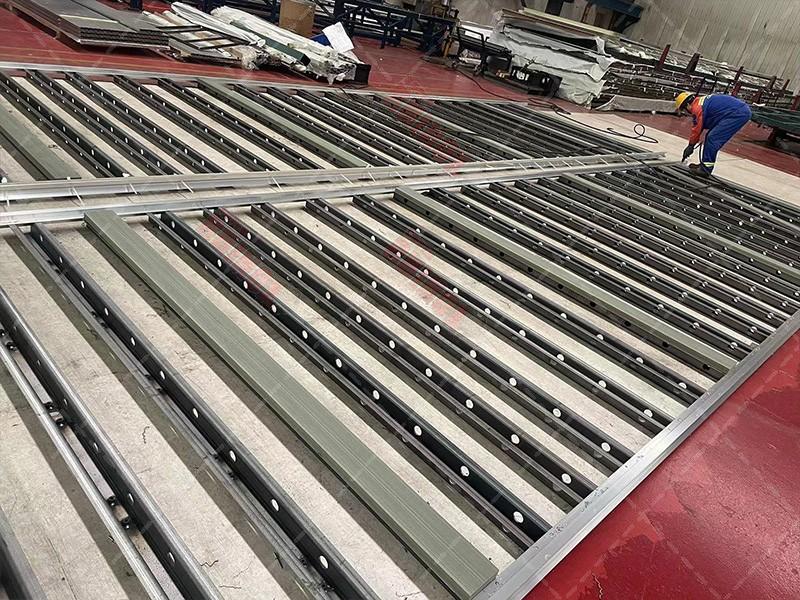

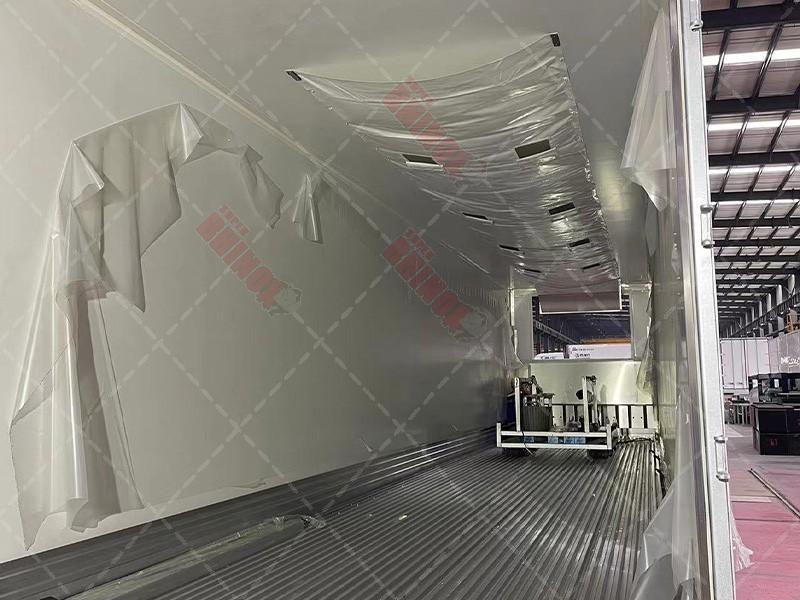

- Floors: The subfloor is often composed of FRP foam sandwich panels, designed to withstand heavy loads and provide thermal insulation.
- Cargo E-Track: Made of 304 stainless steel, these are used for securing cargo during transit.
- Doors: High-strength materials are used for side and rear doors, ensuring a tight seal to maintain the internal temperature .
- Edge and Corner Laps: Customized high-strength aluminum profiles are used to reinforce the structure.
- Door Frame: Constructed from 304 stainless steel with highly elastic rubber sealing strips for a secure closure .
- Lock and Hinge: Also made from 304 stainless steel, with optional hidden door lock designs for security.
- FRP and CFRT Panels: These panels offer better impact resistance, thermal insulation, and are UV resistant, non-perishable, and not easily deformed. They do not absorb water due to the use of PU and XPS foam.
- U and XPS Foam: PU foam offers better thermal insulation compared to XPS. PU can withstand higher temperatures (up to 120°C) than XPS (up to 95°C). Both are flame-retardant materials.
The front part of the semi-trailer truck is the tractor, the trailer is located at the back, and the front part of the trailer is placed on the tractor. Compared with "monolithic"vehicles, semi-trailer trucks can improve the comprehensive economic benefits of road transportation, the transportation efficiency can be increased by 30-50%, the cost can be reduced by30-40%, and the fuel consumption can be reduced by 20-30%. The semi-trailer mainly transports bulky and difficult-to-split bulk goods, as well as fresh and live goods, such as vegetables, meat, and fruits.
Common Standard Semi-Trailer Truck Box Size and Volume
Dimensions | External (LxWxH) (Unit:m) | Inner (LxWxH) (Unit:m) | Theoretical Volume (Unit:m³) |
20 feet | 6.1×2.44×2.59 | 5.69×2.13×2.18 | 26.4 |
20 feet refrigerator box | 6.1×2.44×2.59 | 5.42×2.26×2.24 | 26 |
40 feet | 12.2×2.44×2.59 | 11.8×2.13×2.18 | 54 |
40 feet refrigerator box | 12.2×2.44×2.59 | 11.20×2.24×2.18 | 54 |
40 feet high box | 12.2×2.44×2.9 | 11.8×2.13×2.72 | 68 |
40 feet high refrigerator box | 12.2×2.44×2.9 | 11.62×2.29×2.50 | 67 |
45 feet | 13.7×2.44×2.9 | 13.58×2.34×2.71 | 86 |
45 feet refrigerator | 13.7×2.44×2.9 | 13.10×2.29×2.50 | 75 |
At present, we mainly produces box trailers for to aplications refigerated trucks and dry freight trucks. According to diffrent aplications, the material selection of box trailers i also different. Accordingto the type of trailr truck, it is divided into a full enclosed box truck, wingtruck, curtainside truck, etc. According to the materal it is divided into FRP foam core composite panel body, FRP honeycomb core composite panel body aluminum composit epanel body, all-aluminum body, etc.
Why Choice Cimceco Draw Bar high bed Puling Trailer with four axles
Welcome to our company, where we specialize in manufacturing top-of-the-line refrigerated truck body and trailer body. These trailers are meticulously engineered to meet the demands of various industries requiring efficient and reliable transportation solutions.
Our refrigerated truck body and trailer body are designed to offer exceptional performance and versatility. With a sturdy construction and high-quality materials, these trailers are built to withstand heavy loads and challenging road conditions, making them an ideal choice for transporting a wide range of goods.
Featuring four axles, our trailers provide superior stability and weight distribution, ensuring smooth handling and reducing wear and tear on tires and other components. This configuration also allows for increased load capacity, making it easier to transport oversized or heavy cargo.
In addition to their robust design, our Draw Bar high bed Pulling Trailers are highly customizable to meet the specific needs of our customers. Whether you require a refrigerated truck and trailer body, a flatbed tractor trailer, or any other type of flat bed trailer, we can tailor our trailers to suit your requirements.
At our company, we understand the importance of providing solutions that deliver both efficiency and reliability. That's why our Draw Bar high bed Pulling Trailers are engineered to deliver optimal performance while ensuring the safety of your cargo. Whether you're in need of a single trailer or a fleet of trailers for sale, we have you covered.
Experience the difference with our refrigerated truck body and trailer body. Contact us today to learn more about our products and how we can help meet your transportation needs.
|
|
|
|
|
A mature design team can design reasonable semi and trailer solutions according to customer needs in the first time, and solve semi and trailer’s problems for customers.
 Leading Full-Service Semi and Trailer DealershipQingdao Cimceco Vehicle Co., Ltd. has worked in the special vehicle industry for more than 30 years, selling about 800 vehicles annually, and has accumulated rich experience. We have our own factory,Our goal is to produce and sell semi and trailers with a relatively high cost performance.
|
Strong Technical Team
A mature semi and trailer design team can design reasonable solutions according to customer needs in the first time, and solve problems for customers.
Ouality Control System
Comprehensive supervision and control of semi and trailer products using international quality control standards.
High Ouality Raw Material
The steel used in the product of semi and trailer is all made of domestic first-tier steel mills.
After-sales service
Provide lifelong technical services for products, provide technical training for users, and provide 24-hour service.

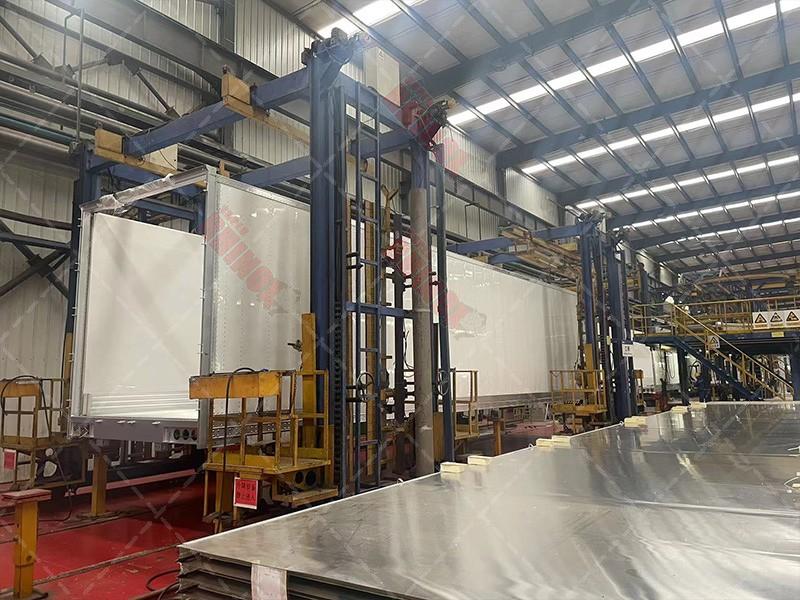

Semi and Trailer Workshop
 Workshop |  Workshop |  Workshop |
 Workshop |  Workshop |  Workshop |
So far, 4,000 companies have chosen to cooperate with Cimceco
 |  |  |
 |  |  |
