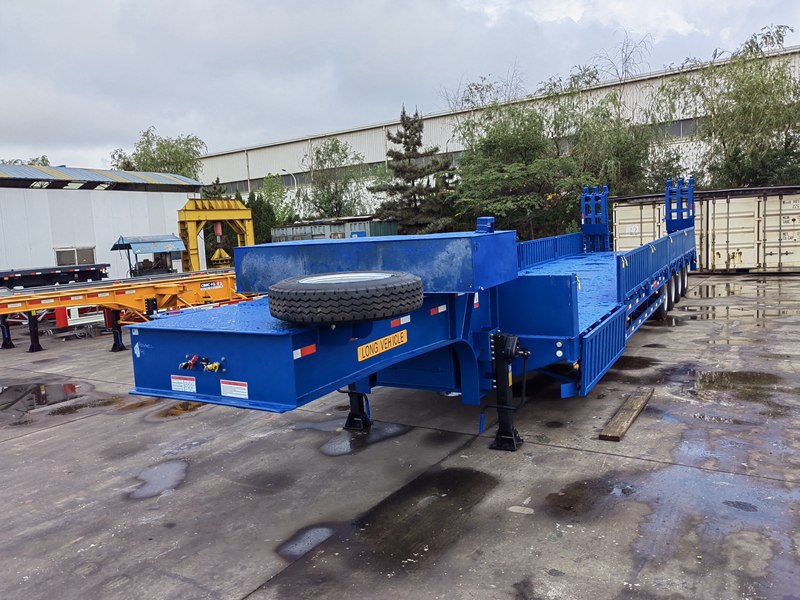

A 4 axle low bed trailer, also known as a lowboy trailer or lowbed trailer, is a specialized type of semi-trailer designed for the transportation of heavy and oversized loads that cannot be easily accommodated by standard flatbed trailers due to height restrictions or weight distribution concerns.

Key Features of a 4 Axle Low Bed Trailer

1. Deck Design: The deck of a low bed trailer is typically lower than that of a standard flatbed, allowing it to carry taller loads and still clear bridges and other height-restricted areas.

2. Axle Configuration: With four axles, these trailers can distribute the weight of the load more evenly, improving stability and allowing for the transportation of heavier equipment.

3. Suspension System: 4 axle low bed trailers can be equipped with either mechanical, air, or hydraulic suspension systems to handle the varying road conditions and weight distribution.

4. Wheels and Tires: These trailers are fitted with heavy-duty wheels and tires designed to support and transport high payloads across different terrains.

5. Braking System: Most low bed trailers come with air brakes or ABS (Anti-lock Braking System) for enhanced safety and control during transportation.

6. Outriggers: Optional components that extend from the sides of the trailer to provide additional support and stability for wide cargo loads.

7. Ramps and Loading Systems: Low bed trailers can be equipped with fixed ramps, adjustable hydraulic ramps, or removable goosenecks to facilitate the loading and unloading process.

8.


Applications of 4 Axle Low Bed Trailers

4 axle low bed trailers are versatile and find use in various industries:

• Construction Industry: Transporting heavy construction equipment such as excavators, bulldozers, cranes, and wheel loaders.

• Oil and Gas Industry: Hauling drilling equipment, large pipes, pressure vessels, and other heavy machinery.

• Mining Industry: Transporting large mining equipment like dump trucks, heavy drilling machines, and earthmovers.

• Wind Energy: Carrying wind turbine components such as tower sections, nacelles, and blades to wind farm locations.

• Heavy Vehicles: Transporting trucks, buses, military vehicles, and other heavy or oversized vehicles.

• Agricultural Industry: Moving large agricultural machinery like tractors, combines, and harvesters.

• Manufacturing and Industrial Equipment: Moving heavy machinery, boilers, transformer units, and other industrial equipment.

Technical Specifications

While the exact specifications can vary based on the manufacturer and customization, a typical 4 axle low bed trailer might include:

• Dimensions: Closed total length can range up to 14.980 meters, with a platform length of 9.880 meters when closed, and an open total length of 21.280 meters.

• Width: Typically around 2.550 meters, with extendable side arms.

• Platform Height: Approximately 930 mm, allowing for the transportation of tall loads.

• Payload: Capable of carrying a payload of up to 51,000 kg.

• Chassis: Made of high resistance steel with all-welded construction.

• Suspension: Air suspension with WABCO brake system.

• Axles: Four axles, each with a loading capacity of 12 tons, with self-steering axles at the rear and a lifting system for the first axle.

• Brake System: Double line air brake system with 2S2M WABCO - EBS.

• Tires: 16+1 tubeless 235/65 R 17.5 tires with rims.

These trailers are engineered to handle the specific challenges of transporting heavy and oversized loads, providing a critical service across various sectors that require the movement of such equipment.
