Model NO.: gooseneck container chassis
Material: Steel
Grade: Heavy Duty
Axle Number: 3 Axle
Self-dumping: Not Self-dumping

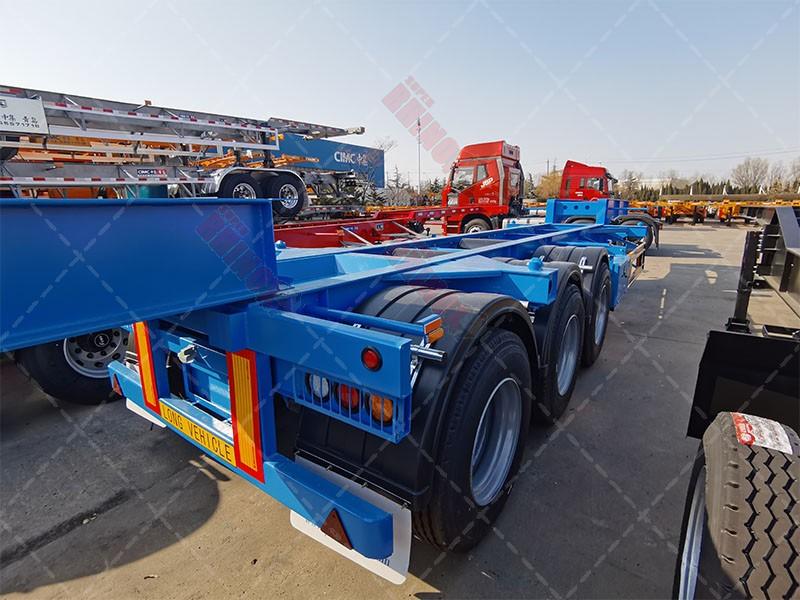

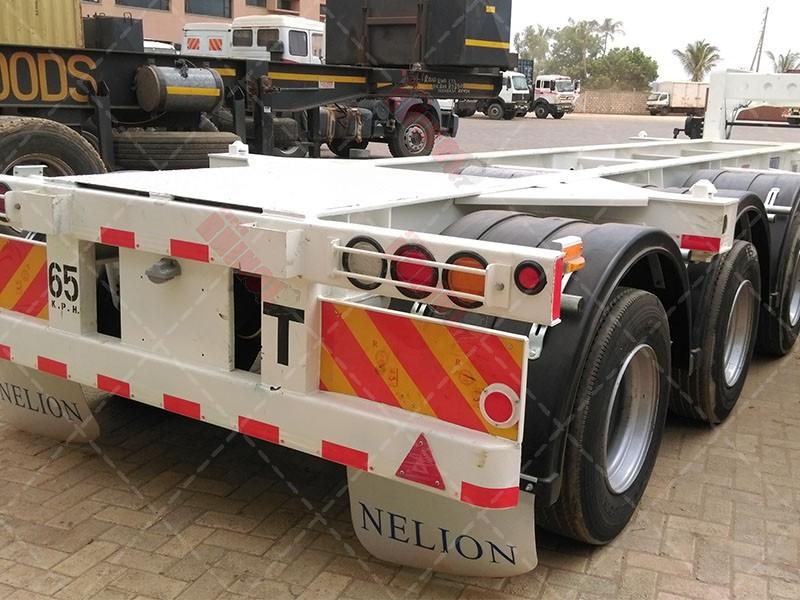

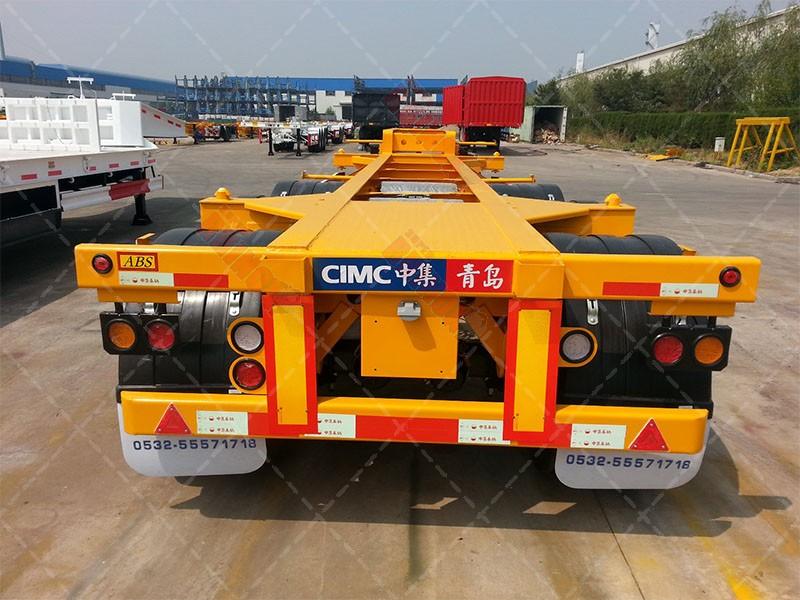

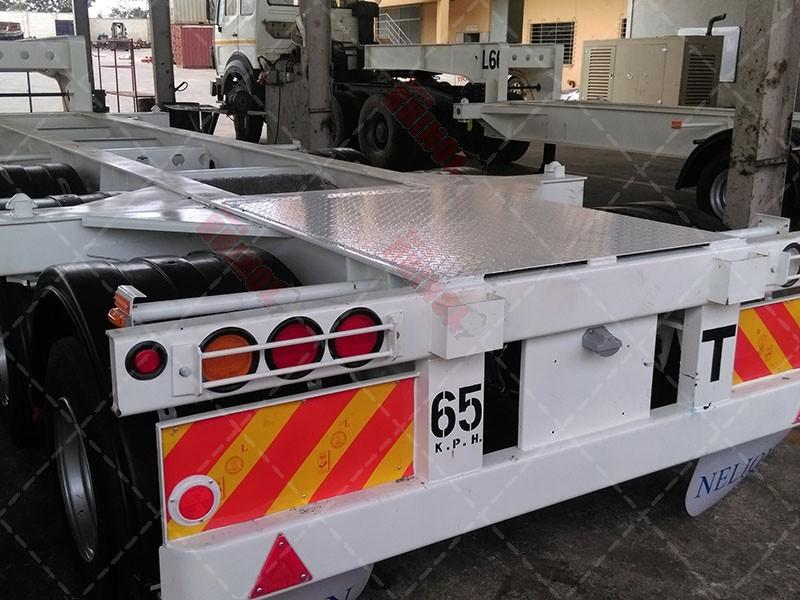

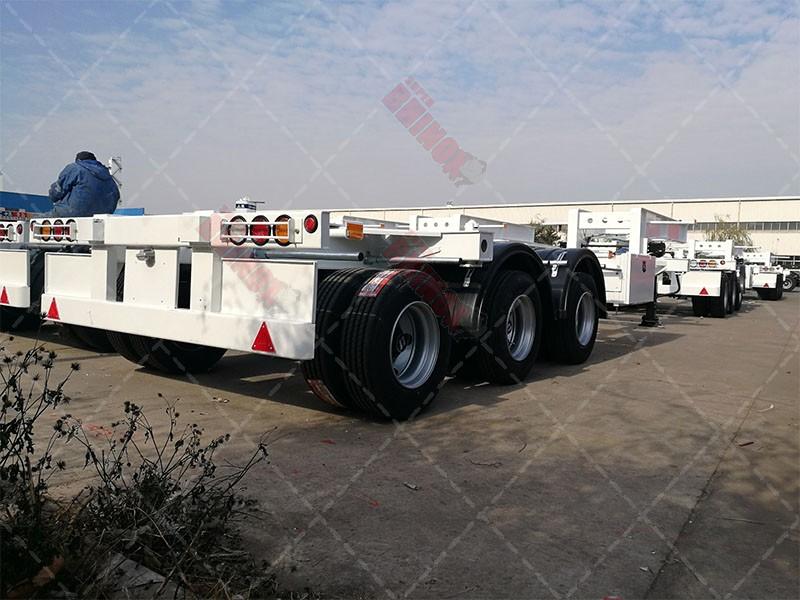

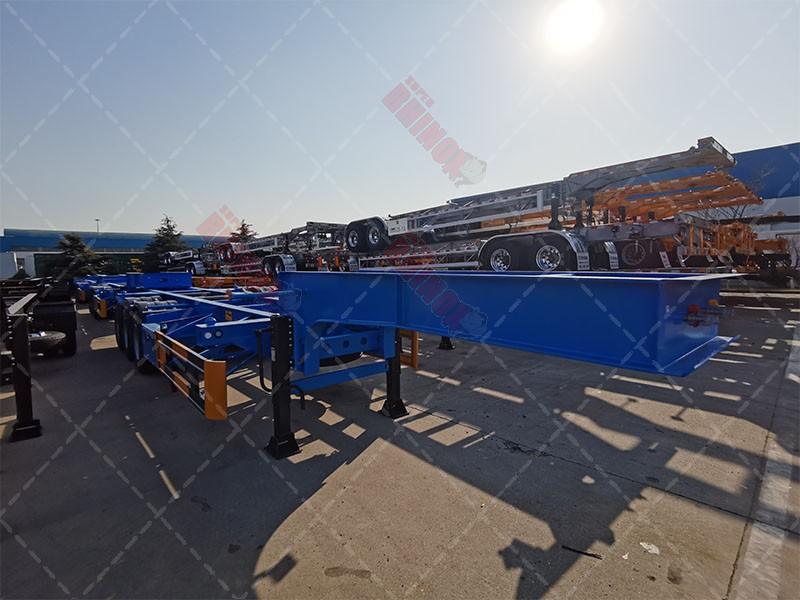

Type | 20ft GN skeleton container chassis trailer with three axles | ||
Parameter | Dimensions | Overall Dimensions (mm) | L×W×H:7,200×2,470×1530 |
Max. Payload (kg) | 40,000 | ||
Fabric & Configuration | Main beam | Flange 14mm/16m, | |
Floor | None | ||
Painting | Primer and topcoat | ||
Tire | Type: 12R22.5, equip 13pcs per chassis, ling long or Triangle | ||
Rim | Type: 9.0*22.5, equip13pcs per chassis | ||
Axle | Heavy Duty RHINOX13T*3sets | ||
Locks | 4pcs | ||
King pin | JOST 50# | ||
Suspension | Three axle Mechanical suspension for heavy load | ||
Leaf spring | 10pcs, 90*13mm, | ||

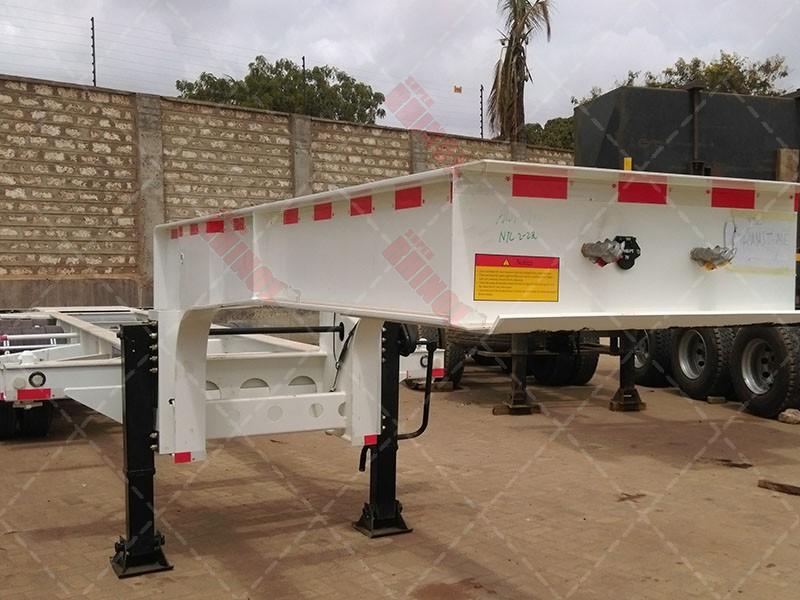

Landing gear | JOST | ||
Brake system | Dual air brake system; No ABS | ||
Electric system | 24V, LED lights. | ||
Tool box | One | ||
Spare tire carrier | Two | ||
Oil Tank | None | ||
Color | Choose | ||
Others | |||
