Model

LHT9366TJZ

Parameter

Dimensions

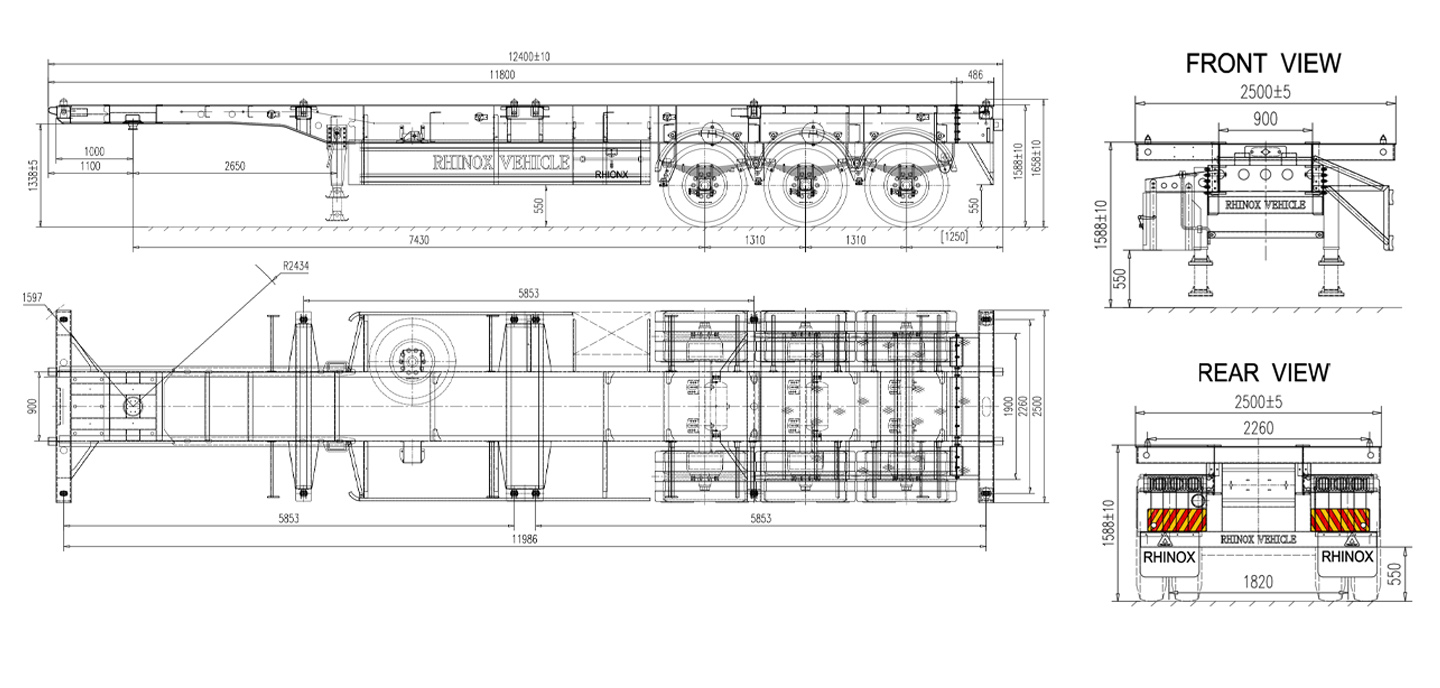

Overall Dimensions (mm)

L×W×H:12,490×2,470×1,530
(the height will be confirmed by the specification of tractor)

King pin setting (mm)

About 1000

Fifth wheel height (mm)

The height will be adjusted according to specification of tractor

Axle space (mm)

7,390+1,310+1,310

Weight

Tare weight (kg)

6,200

Max. Payload (kg)

40,000

Gross weight (kg)

46,200

Fabric & Configuration

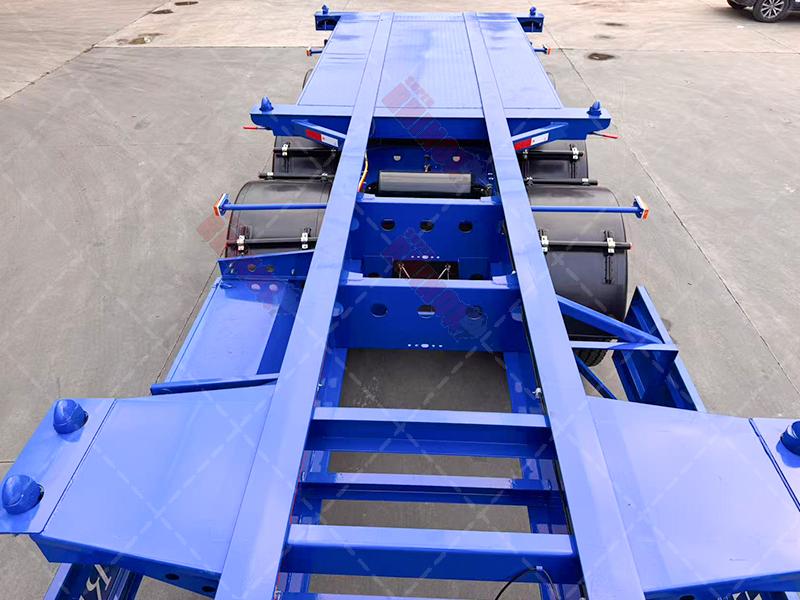

Main beam

Flange 14mm/16m,
Web 6mm,

Floor

None

Painting

Primer and topcoat

Tire

Type: 12R22.5, equip 13pcs per chassis, ling long or triangle

Rim

Type: 9.0*22.5, equip13pcs per chassis

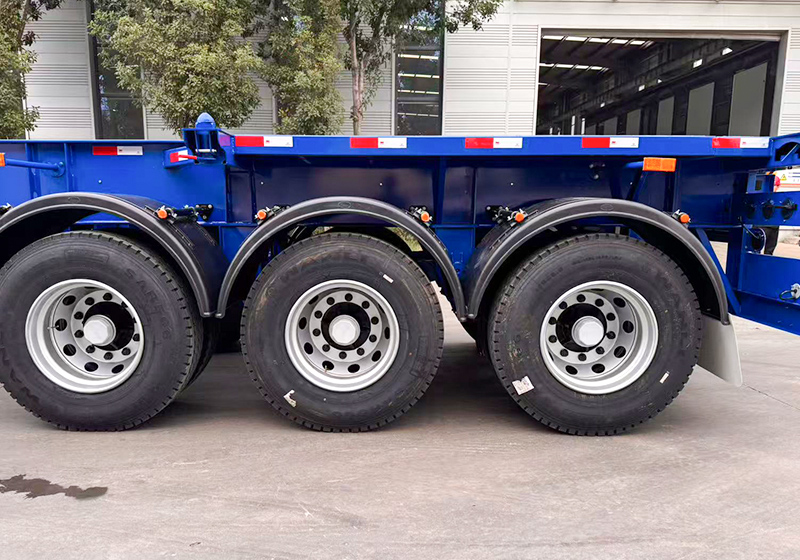

Axle

Heavy Duty RHINOX13T*3 sets

King pin

JOST 50#

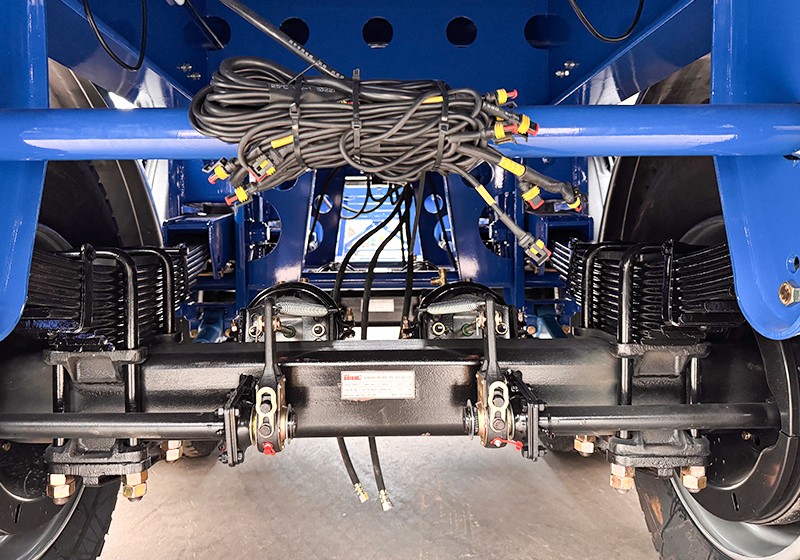

Suspension

Three axle Mechanical suspension for heavy load

Leaf spring

10pcs, 90*13mm,

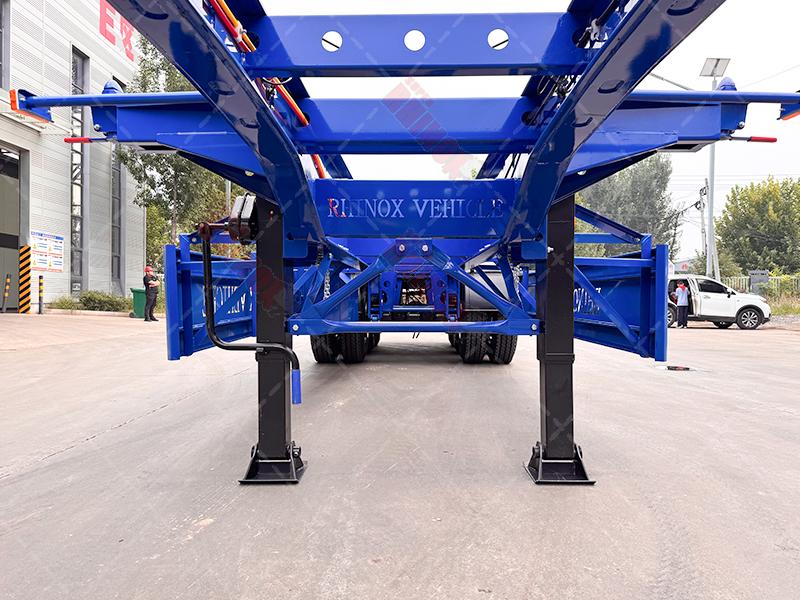

Landing gear

JOST

Brake system

Dual air brake system; No ABS

Electric system

24V, LED lights.

Tool box

One

Spare tire carrier

Two

Oil Tank

None

Color

Price
