2 axles Lowbed Semi Trailer with One line 16m

Platform Length: 16 meters continuous one-line design

Axle Configuration: 2 axles with reinforced load distribution

Load Capacity: Up to 40 metric tons (adaptable for various heavy cargo)

Deck Height: 1.0 - 1.2 meters (adjustable based on requirements)

Beam Structure: High-tensile steel I-beams for optimal strength-to-weight ratio

Suspension: Heavy-duty multi-leaf spring with shock absorbers

Brake System: Dual-circuit air brakes with ABS compatibility

WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
img of mask_layer_close
lowbed semi trailer
2 axle lowbed trailer
lowbed semi trailer
2 axle lowbed trailer

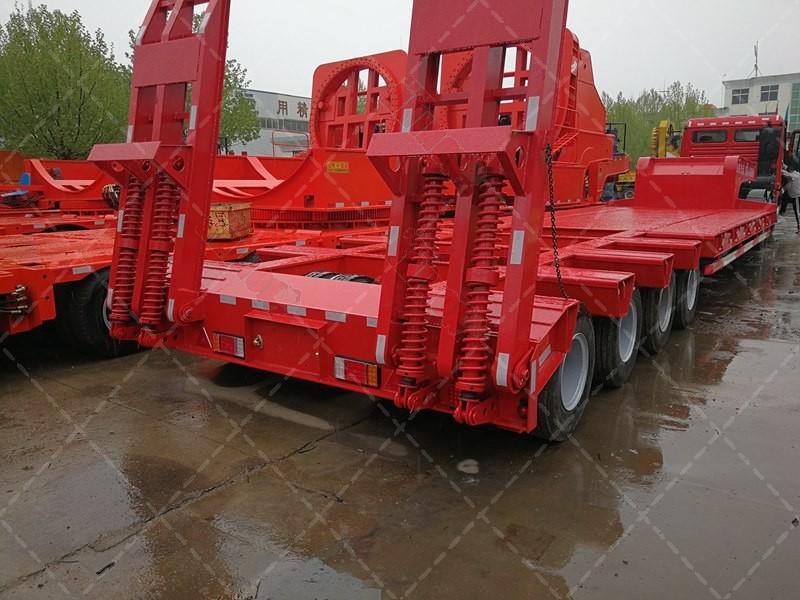

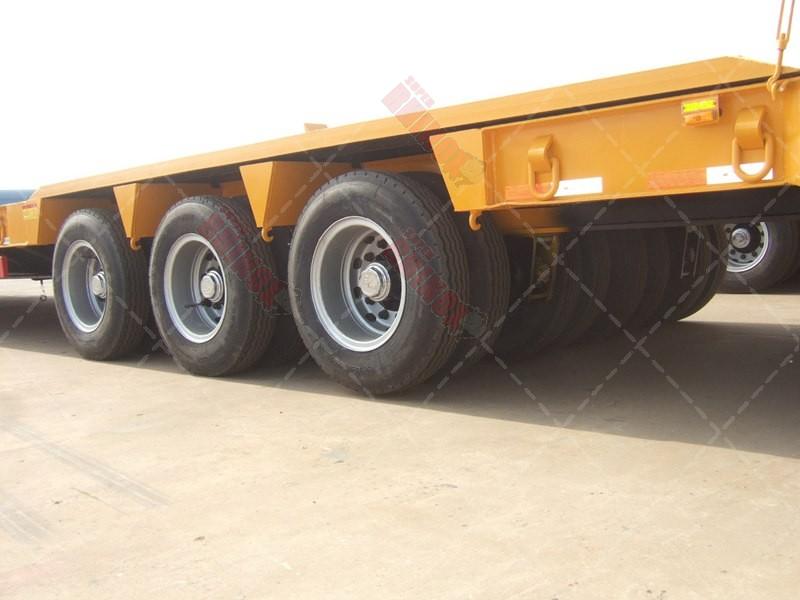

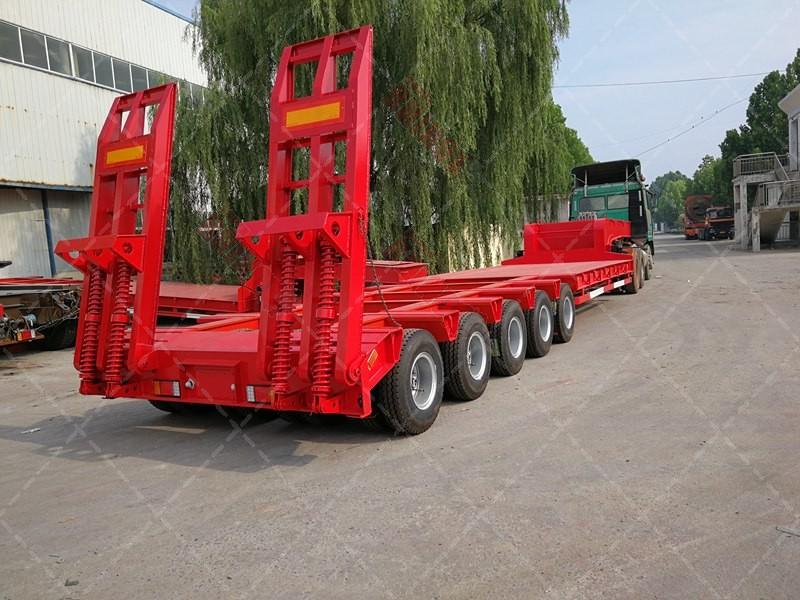

16m Lowbed trailer with One line two axles
Product Detail

Product Overview

4 axle lowbed semi trailer is engineered to solve your most challenging heavy-duty transportation problems. Built for strength, stability and efficiency, it’s the ideal choice for construction, mining and industrial sectors that demand reliability.

Product Advantages

  • 4-Axle Stability & Load Capacity: Distributes weight evenly, safely handling 80-120 tons (customizable). Lowbed semi trailers are equipped with heavy-duty axles, hydraulic brakes and premium tires for smooth, safe long-distance transport.

  • Durable & Long-Lasting: High-strength Q355B steel frame + advanced welding technology. Corrosion-resistant, tough, and built to withstand harsh working environments.

  • Easy Loading & Customization: Low bed design (adjustable ground clearance) simplifies loading/unloading. Customize bed length (12m-18m, 16m optional), tires, suspension and more.

  • Safe & Compliant: Meets ISO, CE standards. Lowbed semi trailers are equipped with reflective strips, emergency brakes and optional tire pressure monitoring — keep your cargo and team safe.

  • Low Maintenance & User-Friendly: Detachable side rails, adjustable ramps and well-known brand components — save time and reduce downtime.


Why Choose Our 4 Axle Lowbed Semi Trailer?

Heavy-duty transport needs reliability — our 4 axle low bed trailer delivers more than that:

  • Better load-bearing than standard lowbed semi trailers, cutting transport costs.

  • Strict quality control from raw materials to assembly — no compromise on performance.

  • One-stop customization & comprehensive after-sales service (installation, maintenance, spare parts).


Product parameters:


Type

16m Lowbed semi trailer with One line two axles

Parameter

Dimensions

Overall Dimensions (mm)

L×W×H:16,000×2,600(3200mm)×3253
(the height will be confirmed by the specification of tractor)

Max. Payload (kg)

40,000

Fabric & Configuration

Main beam

Flange 16mm/18mm,
Web 10mm,

Floor

Checker plate, 4mm

Painting

Primer and topcoat

Tire

Type: 12R22.5, equip 9pcs per chassis, ling long or sanjiao

Rim

Type: 9.0*22.5, equip9pcs per chassis

Axle

FUWA 13T*6 sets

King pin

JOST 50#

Suspension

Six axle Mechanical suspension for heavy load

Leaf spring

None

Landing gear

JOST E100

Brake system

Dual air brake system; No ABS

ABS

No

Electric system

24V, LED lights.

Tool box

One

Spare tire carrier

Two

Color
