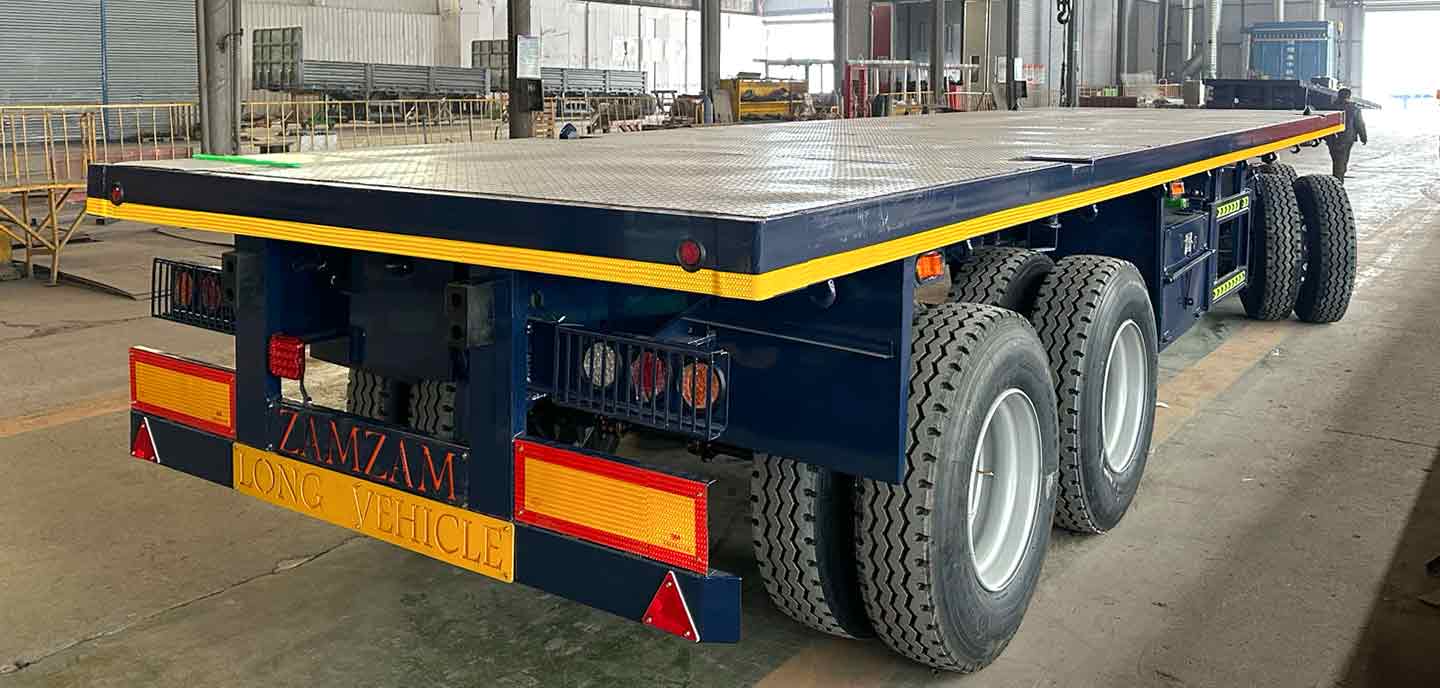

Super RHINOX VEHICLE 4 axle drawbar trailer: heavy-duty transporter with tractor and 4-axle trailer. For bulk/oversized/heavy cargo (steel, construction materials, machinery, containers). High load capacity, stability, regulatory compliance. Flatbed semi trailer Ideal for long-haul logistics and heavy freight.
Why Choose Super RHINOX VEHICLE?
• 30% Longer Lifespan – 4 axle drawbar trailer with military-grade materials & anti-corrosion treatment
• Smart Load Tech – Optional weigh-in-motion sensors & load balance monitoring
• 24/7 Support – Worldwide service network with 2-year structural warranty
A 4 axle drawbar trailer designed for heavy-duty transportation of oversized, overweight, or non-disassembled cargo features high load capacity, multi-axle load distribution, and a drawbar coupling system for enhanced stability, making it suitable for long-haul journeys and challenging road conditions.
• Heavy Haulage: Wind turbines, transformers, construction machinery (e.g., excavators).
•Steel Structures: Bridge components, girders, pipelines.
•Special Cargo: Containers, prefabricated modules, or other oversized loads.
High Load-Bearing Structure
○ Four-axle distributed design ensures even load distribution, with a maximum gross weight capacity of over 40 tons (subject to regulations and configuration).
○ The chassis is made of high-strength steel (e.g., Q690 or alloy steel) with anti-corrosion and anti-fatigue treatment, extending service life by more than 30%.
Regulatory Compliance
○ Wheelbase and track width comply with national road regulations (e.g., GB1589 standards), avoiding over-limit penalties. Optional air suspension reduces road impact and protects pavement.

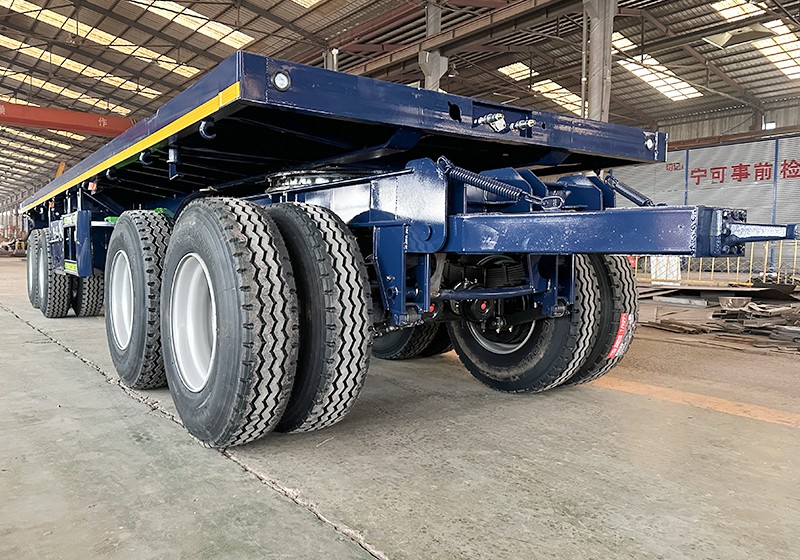

Flexible Steering System
○4 axle drawbar trailers areequipped with multi-axle steering technology (e.g., self-steering axles), reducing turning radius and improving maneuverability in complex road conditions.
Safety Features
○ Standard ABS anti-lock braking system, air brakes, reflective markings, and anti-rollover devices. Optional EBS electronic braking or tire pressure monitoring available.
Modular Customization

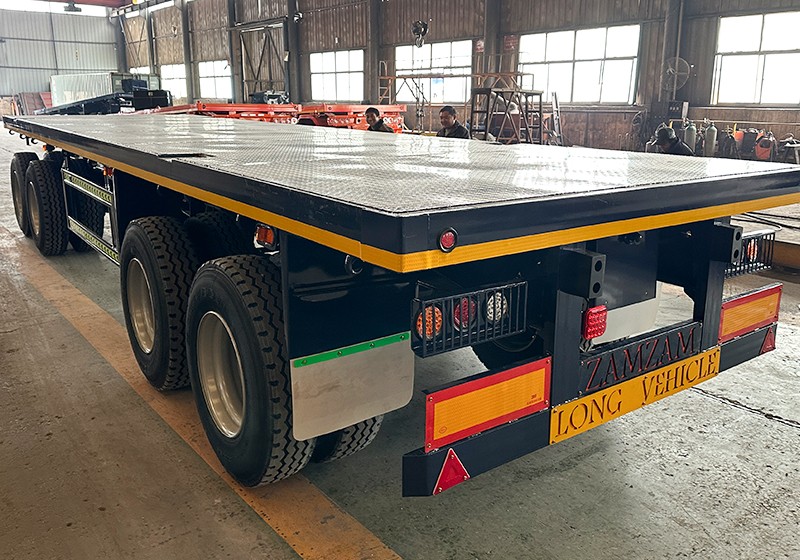

○ 4 axle drawbar trailer with multiple deck configurations (flatbed, box, lowbed, etc.) to accommodate different cargo types (e.g., containers, non-disassembled equipment).
Dimension | Length | Approx 10,850m |
| Width | Approx 2,480mm | |
| Height | Approx 1495mm | |
| Axle spacer | Approx5,300mm+1,310mm | |

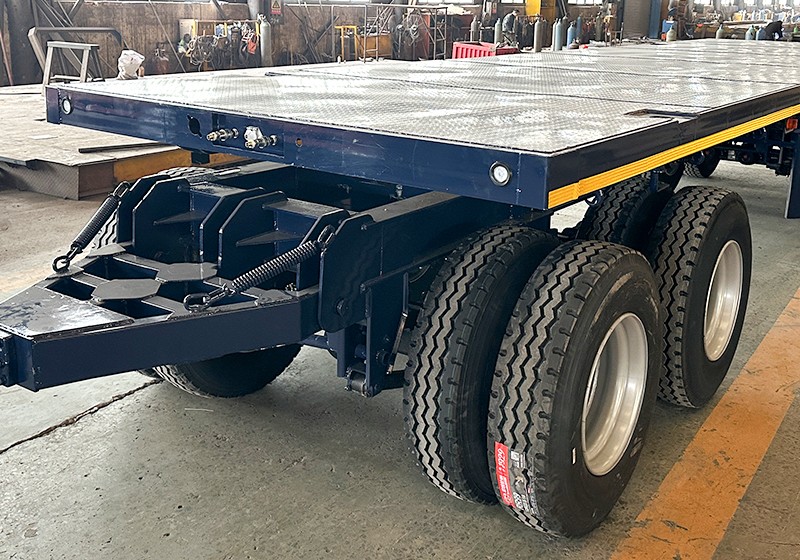

Height of Draw Ba | Approx890mm | |
Length of Draw Bar | Approx1,174m | |
Weight | Tare Weight(Tolerance 0~-4%) | Approx 7,500 k |
Max. Payloa | Approx 30,000 kg | |
Gross Vehicle Weight | Approx37,500 kg | |
| Spare Tire Carrier | Equipped One sets per chassis with No spare tire. |
| Side Guard | None | |

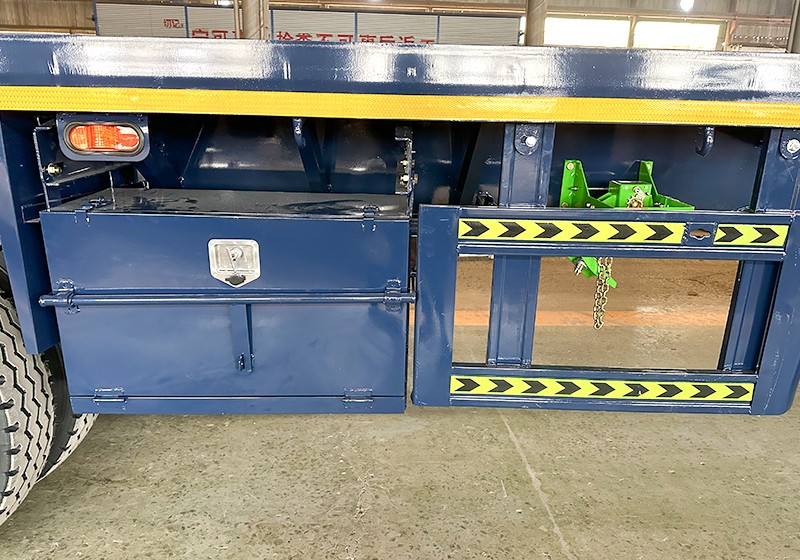

Tool Bo | Equipped One set | |
Fuel Tank | 1200L fuel tank | |
Mudguar | Plastic mud guard, One logo in the mudguard flap | |
Painting | to choose the color |
