Semi truck trailers, often referred to simply as "trailers," are essential components of the trucking industry, providing a means to transport goods across vast distances. Understanding the dimensions of these trailers is crucial not only for logistics and transportation companies but also for regulatory compliance, safety, and efficiency in operations. In this article, we will explore the typical lengths of semi truck trailers, the regulations governing their dimensions, and the implications for the trucking industry.

Typical Lengths of Semi Truck Trailers

The length of a semi truck trailer can vary significantly based on its type and intended use. Here are the most common types of semi truck trailers and their typical lengths:

1. Standard Dry Van Trailers

Standard dry van trailers are the most commonly used trailers in freight transport. These trailers are enclosed and designed to carry non-perishable goods. The typical length of a standard dry van trailer is 53 feet (16.15 meters) in the United States. However, they can also come in shorter lengths, such as 48 feet (14.63 meters) or even 45 feet (13.72 meters), depending on the requirements of the cargo and the regulations in specific regions.

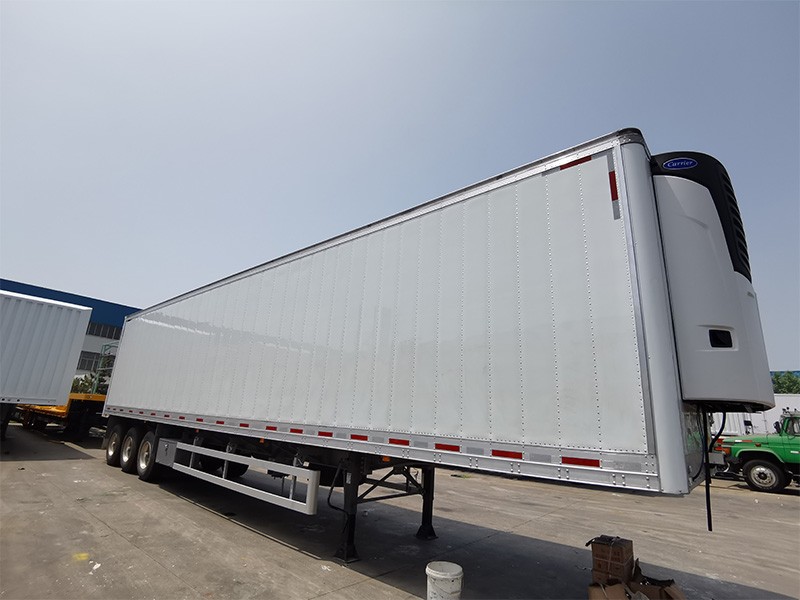

2. Refrigerated Trailers (Reefers)

Refrigerated trailers, also known as reefers, are designed for transporting perishable goods that require temperature control. Like dry van trailers, refrigerated trailers typically measure 53 feet (16.15 meters). However, smaller reefers can also be found, often ranging from 28 feet (8.53 meters) to 48 feet (14.63 meters). The choice of trailer length often depends on the type and volume of goods being transported.

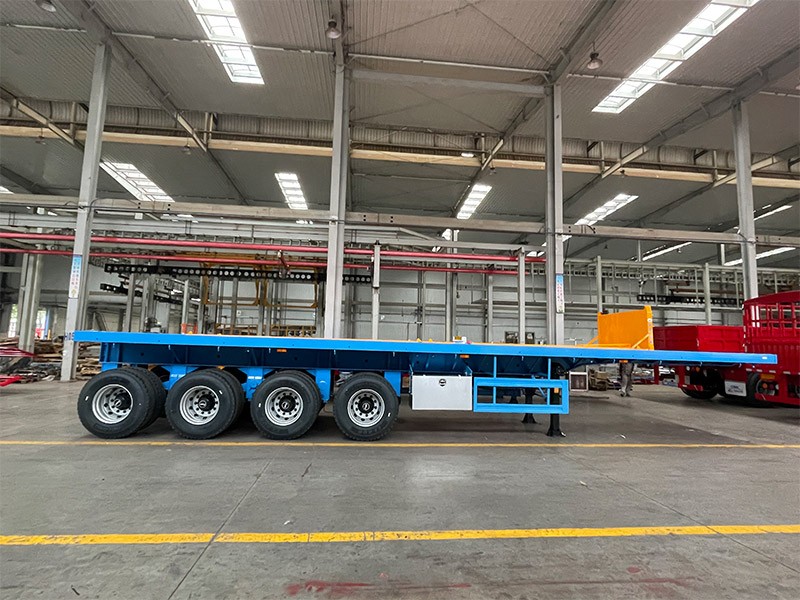

3. Flatbed Trailers

Flatbed trailers are utilized for transporting oversized or irregularly shaped loads, such as construction materials, machinery, and heavy equipment. The standard length for flatbed trailers is usually 48 feet (14.63 meters) or 53 feet (16.15 meters). The open design allows for easy loading and unloading from any side, which is essential for certain types of cargo.

4. Step Deck Trailers

Step deck trailers, also known as drop deck trailers, have a lower deck height that allows for the transportation of taller cargo without exceeding height restrictions. These trailers typically range from 48 to 53 feet (14.63 to 16.15 meters) in length. The lower deck design is particularly useful for shipping equipment and machinery.

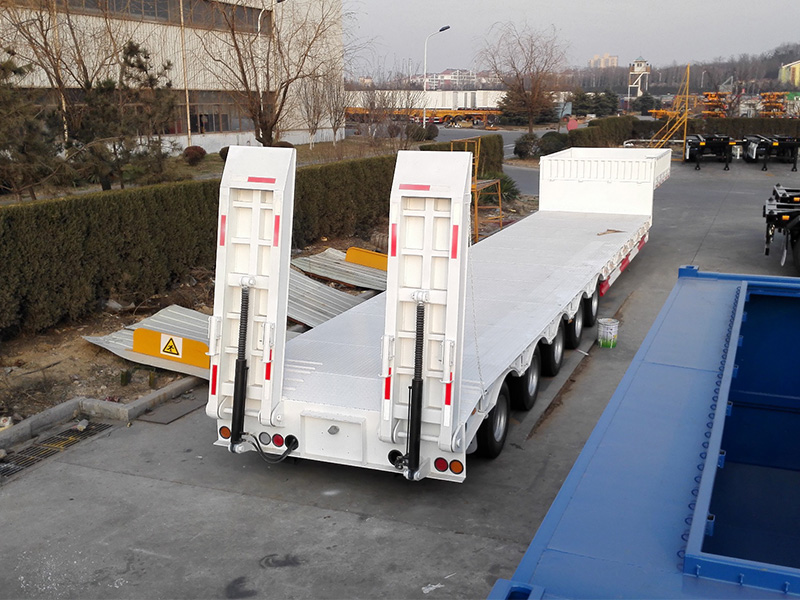

5. Lowboy Trailers

Lowboy trailers are specialized trailers designed to carry heavy equipment and vehicles. These trailers have a lower deck that allows for the transportation of tall loads while remaining within height limits. The typical length of a lowboy trailer can vary but is generally around 48 to 53 feet (14.63 to 16.15 meters).

6. Specialty Trailers

There are many other types of specialty trailers, such as car haulers, tank trailers, and bulk trailers, each designed for specific transportation needs. The lengths of these trailers can vary widely based on their particular function, with some being shorter than 40 feet (12.19 meters) and others exceeding 53 feet (16.15 meters).

Regulations Governing Trailer Lengths

The lengths of semi truck trailers are subject to various regulations that vary by country and region. In the United States, the Federal Highway Administration (FHWA) and individual state departments of transportation set regulations regarding trailer lengths:

• Federal Regulations: Under federal law, the maximum length for a semi truck trailer is generally 53 feet (16.15 meters) for trailers that are part of a combination vehicle. This regulation applies to interstate highways and ensures standardization across state lines.

• State Regulations: Individual states may have specific regulations that allow for longer trailers on certain roads or under specific conditions. Some states permit "longer combination vehicles" (LCVs) that can exceed the standard length, provided they meet certain criteria.

• International Regulations: In other countries, trailer lengths may differ. For example, in Europe, the standard length for a semi truck trailer is typically 13.6 meters (approximately 44.6 feet). However, regulations can vary between countries within the European Union.

Implications for the Trucking Industry

Understanding the lengths of semi truck trailers and the regulations governing them has significant implications for the trucking industry:

1. Logistics and Planning

Knowing the dimensions of trailers is essential for logistics and route planning. Companies must ensure that their loads fit within the trailer dimensions and comply with local regulations regarding height, width, and weight limits. This is particularly important when navigating urban areas or restricted roadways.

2. Safety Considerations

Trailer length can impact safety on the road. Longer trailers may have more difficulty maneuvering in tight spaces, making it essential for drivers to be trained in handling such vehicles. Additionally, longer trailers may require additional considerations for braking distances and turning radii.

3. Cost Efficiency

Choosing the right trailer length can also affect cost efficiency. Longer trailers may allow for the transportation of more cargo, reducing the number of trips needed and lowering fuel costs per unit of cargo. However, companies must balance this with regulatory compliance and the potential for increased maintenance costs associated with larger trailers.

4. Environmental Regulations

As environmental regulations continue to evolve, the trucking industry may face additional requirements related to emissions and fuel efficiency. Understanding the dimensions of trailers and how they impact vehicle performance can help companies make informed decisions about their fleets.

The length of a semi truck trailer is a critical factor in the trucking industry, affecting everything from logistics and safety to cost efficiency and regulatory compliance. While the standard length for most trailers is 53 feet (16.15 meters), variations exist based on trailer type and specific needs. Understanding these dimensions, along with the regulations governing them, is essential for trucking companies to operate effectively and efficiently in a complex transportation landscape. As the industry continues to evolve, staying informed about trailer dimensions and regulations will remain vital for success in the competitive world of freight transport.
