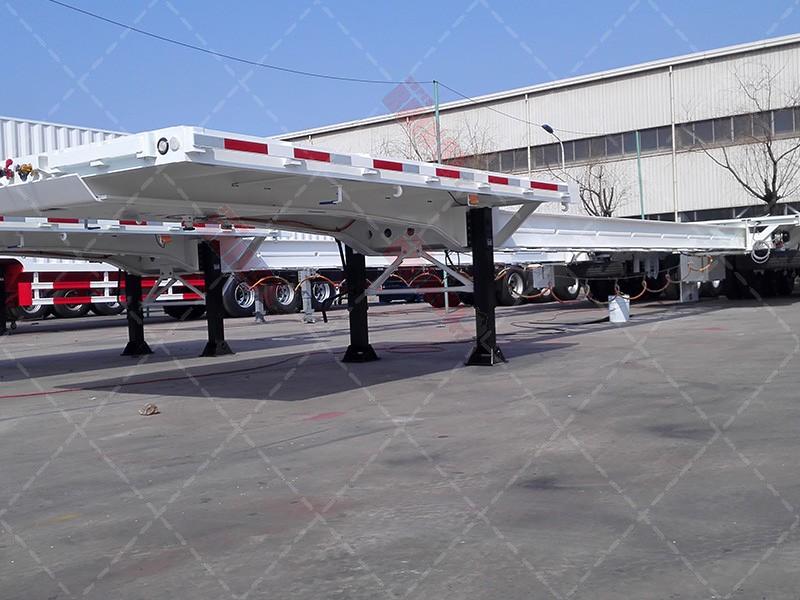

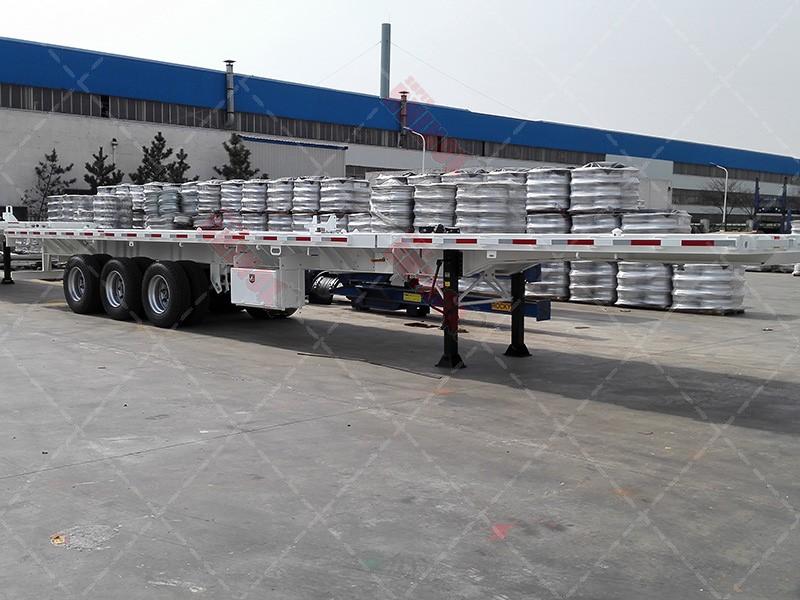

Engineered for superior performance in heavy-duty transport, 40ft extendable flatbed trailer with three axles is designed to handle the most demanding logistics challenges. With a robust triple-axle configuration and extendable deck, this trailer offers exceptional stability, durability, and adaptability for transporting containers, machinery, and oversized cargo.

40ft Extendable Flatbed Trailer Features

1. Heavy-Duty Load Capacity & Extendable Design

• Max Payload: Supports loads up to 60-80 tons, making it ideal for heavy machinery, steel coils, wind turbine blades, and industrial components.

• Extendable Deck: Customizable length (up to 45ft or 53ft) allows for flexible transport of oversized cargo, such as pipes, prefab structures, or multiple containers.

• Reinforced Steel Construction: 40ft extendable flatbed trailer built with high-tensile steel (Q345/Q235) and an I-beam main frame (top flange: 14-20mm, bottom flange: 16-20mm) for maximum durability and resistance to deformation.

2. Enhanced Stability & Safety

• Triple-Axle Configuration: Distributes weight evenly across three axles (13T/16T capacity each), reducing sway and improving balance on sharp turns or uneven terrain.

• Advanced Braking System: Features a dual-line pneumatic brake system with WABCO relay valves and optional ABS anti-lock braking for reliable stopping power under heavy loads.

• Safety Components: Includes LED lighting, 7-way electrical receptacles, and anti-slip checker plate flooring (3mm thickness) for secure cargo placement and visibility.

3. Premium Components for Long-Term Performance

• Axles & Suspension: 40FT extendable flatbed trailer equipped with premium BPW, FUWA, or JOST axles (maintenance-free for up to 800,000 km) and heavy-duty mechanical or air suspension systems for smooth operation.

• King Pin & Landing Gear: JOST 2" or 3.5" king pin and 28T two-speed landing gear ensure easy coupling and stability during loading/unloading.

• Corrosion Resistance: Sand-blasted chassis with anti-corrosive primer and two coats of polyurethane paint protect against harsh environmental conditions.

4. Versatility for Diverse Applications

• Multi-Industry Use: 40FT extendable flatbed trailer perfect for shipping containers (1x40ft or 2x20ft), construction equipment, steel beams, and fragile cargo like glass or marble slabs.

• Easy Loading/Unloading: An open flatbed design with optional side walls or ramps allows access from all sides, enabling efficient crane or forklift operations.

• Customization Options: Tailor tire types (12R22.5 or 11.00R20), deck width, toolboxes, and twist locks to meet specific needs.

Product Applications

This extendable flatbed trailer is widely used in industries requiring transport of variable-length and oversized cargo, including:

• Wind Energy: Transporting wind turbine blades, towers, and nacelles.

• Construction: Hauling prefabricated structures, long steel pipes, and concrete beams.

• Heavy Machinery: Moving excavators, cranes, and agricultural equipment.

• Infrastructure Projects: Transporting bridge components and rail segments.

Why Choose Our 40ft Extendable Flatbed trailer?

1. Proven Durability: Constructed with high-strength steel and automated submerged-arc welding, this extendable flatbed trailer lasts 5-8 years longer than industry averages.

2. Cost-Effective Efficiency: Higher payload capacity reduces trips and fuel costs, while low-maintenance components minimize downtime.

3. Safety Compliance: Meets international standards and regional weight regulations for worry-free operations.

4. Global Export Support: Shipped via RORO or 40HQ containers with door-to-door after-sales service, including remote video guidance and spare parts supply.

Frequently Asked Questions (FAQ)

Q: How does the extension mechanism work on this extendable flatbed trailer?

A: The extendable flatbed trailer uses a hydraulic system to slide the rear deck section, allowing length adjustments from 40ft to 60ft. The operation is controlled via a manual pump or optional power unit for efficiency.

Q: What is the maximum extended length of this 3 axle flatbed trailer?

A: This 3 axle flatbed trailer can be extended up to 60ft (approx. 18.3 meters) to accommodate extra-long cargo. The extension locks securely in place to ensure safety during transit.

Q: Can the trailer be customized for specific regional regulations?

A: Yes, Qingdao Cimceco Vehicle customizes the extendable flatbed trailer to meet regional standards, including axle spacing, lighting, and brake systems, ensuring compliance in markets like Europe, Australia, and North America.
